Morphology and morphometrics

Morphology is the language for describing the structure and behavior of discovered patterns. Morphometrics are the subset of it that the indexer computes and stores.

Examples from the corpus

Near-ballistic translational form:

Crossmap translational morphology

Low-speed meandering form:

NNEA meandering morphology

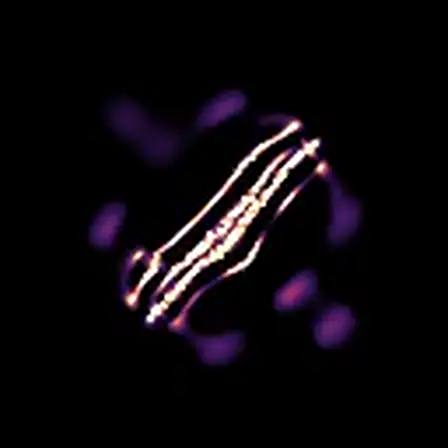

High-tortuosity meander from a motile run:

Motile high-tortuosity morphology

Terms

  • symmetry: coarse structural balance (for example bilateral versus radial appearance).
  • segmentation: visibly repeated substructures.
  • swarm-like: multiple granular mass clusters moving in coupled ways.
  • trajectory geometry: how a pattern moves over time (straight, curved, looping, drifting).

Symmetry, segmentation and swarm are descriptive vocabulary only. Trajectory geometry is measured and indexed. A richer structural index (explicit symmetry classes, segmentation detectors, swarm decomposition) does not exist as indexed fields yet.

Inputs

Available per creature:

  • SimulationMetrics (path, displacement, mass stats, occupancy, energy, speed, gyration, center velocity, optional complexity).
  • optional ActivitySummary time series (speciesCount, diversity, eac, ean) when activity JSONL is present, read from overall/activity.jsonl or campaigns/*/activity.jsonl.

Stored morphometrics (v1)

The indexer computes morphometrics with Morphometrics.from(...) and writes them to creatures.morphometrics_json with method metadata:

  • morphometrics_method = "lenia-swarm:morphometrics"
  • morphometrics_version = 1

Fields:

  • pathTortuosity = pathLength / displacement when displacement > 1e-6, else null.
  • movementEfficiency = displacement / pathLength when pathLength > 1e-6, else null.
  • activitySpeciesMax = max(speciesCount) when activity exists.
  • activitySpeciesStd = std(speciesCount) when activity exists.
  • activityDiversityStd = std(diversity) when activity exists.
  • activityEacMax = max(eac) when activity exists.
  • activityEanMax = max(ean) when activity exists.

If activity summaries are missing, all activity* fields are null.

Reading the numbers

  • low tortuosity and high efficiency mean directional transport,
  • high tortuosity and low efficiency mean meandering or looping with little net displacement.

Anchored examples:

  • crossmap seed 0: path/displacement=1.0026.
  • nnea seed 1: path/displacement=6.3610.
  • motile seed 8: path/displacement=22.2946.

Caveats:

  • pathLength >= displacement always holds.
  • With only two samples, pathLength == displacement is expected and does not indicate a bug.
  • Tortuosity distributions mean something only when recordings include enough temporal samples.

Trait labels

Trait labels such as mover, wanderer, swarm or complex are not stored; the indexer stores raw morphometrics only. Motion-class names do appear in taxonomy family IDs (see Taxonomy). If trait labels become stored outputs, they must carry a trait method name, a trait version, and a threshold-set identifier.

  • Taxonomy, which builds family and genus IDs from these measurements.
  • Ecology, which exports them for parameter-space analysis with LeniaCLI analyze ecology.
  • The compendium, for where they are stored.
